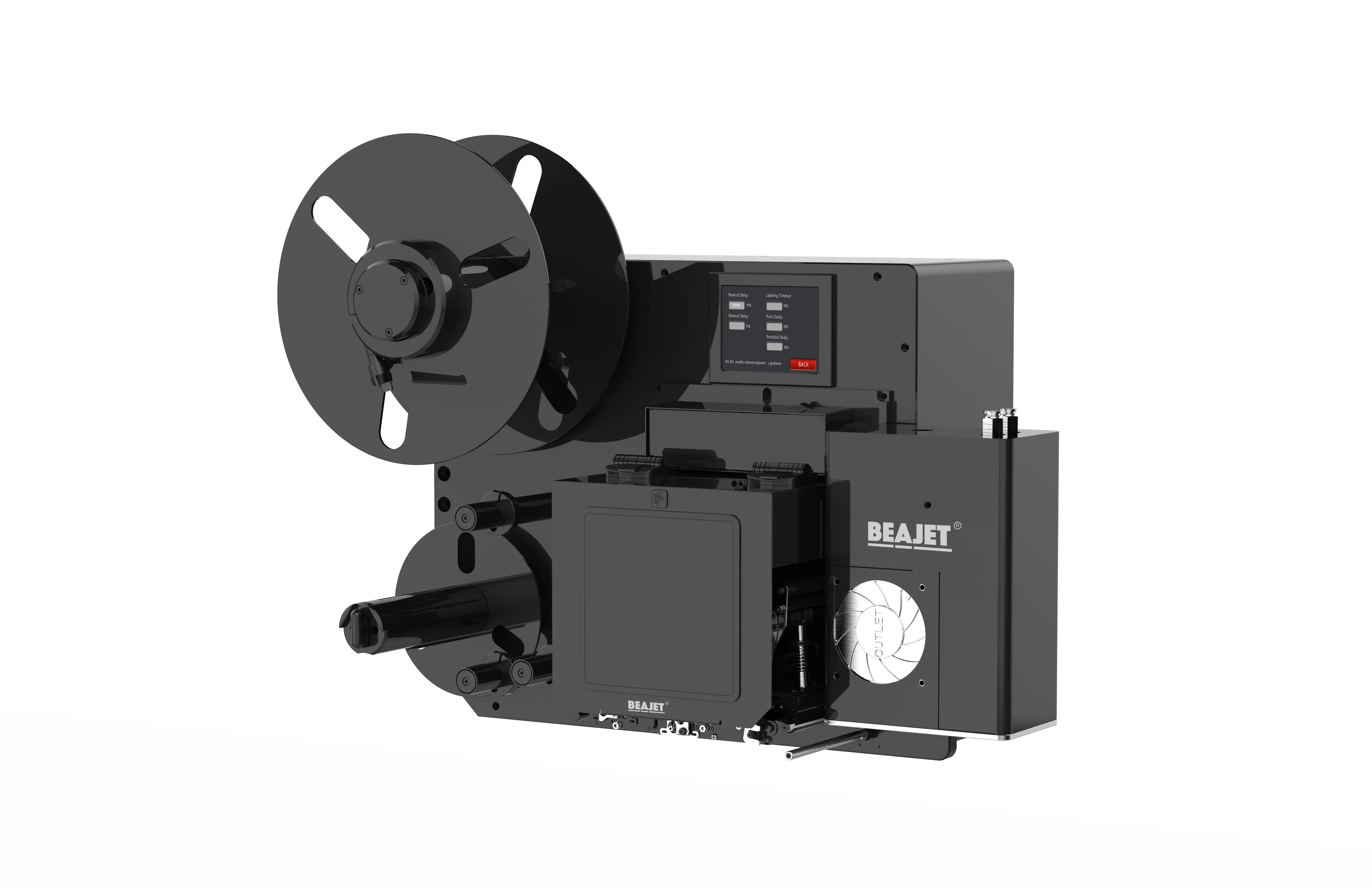

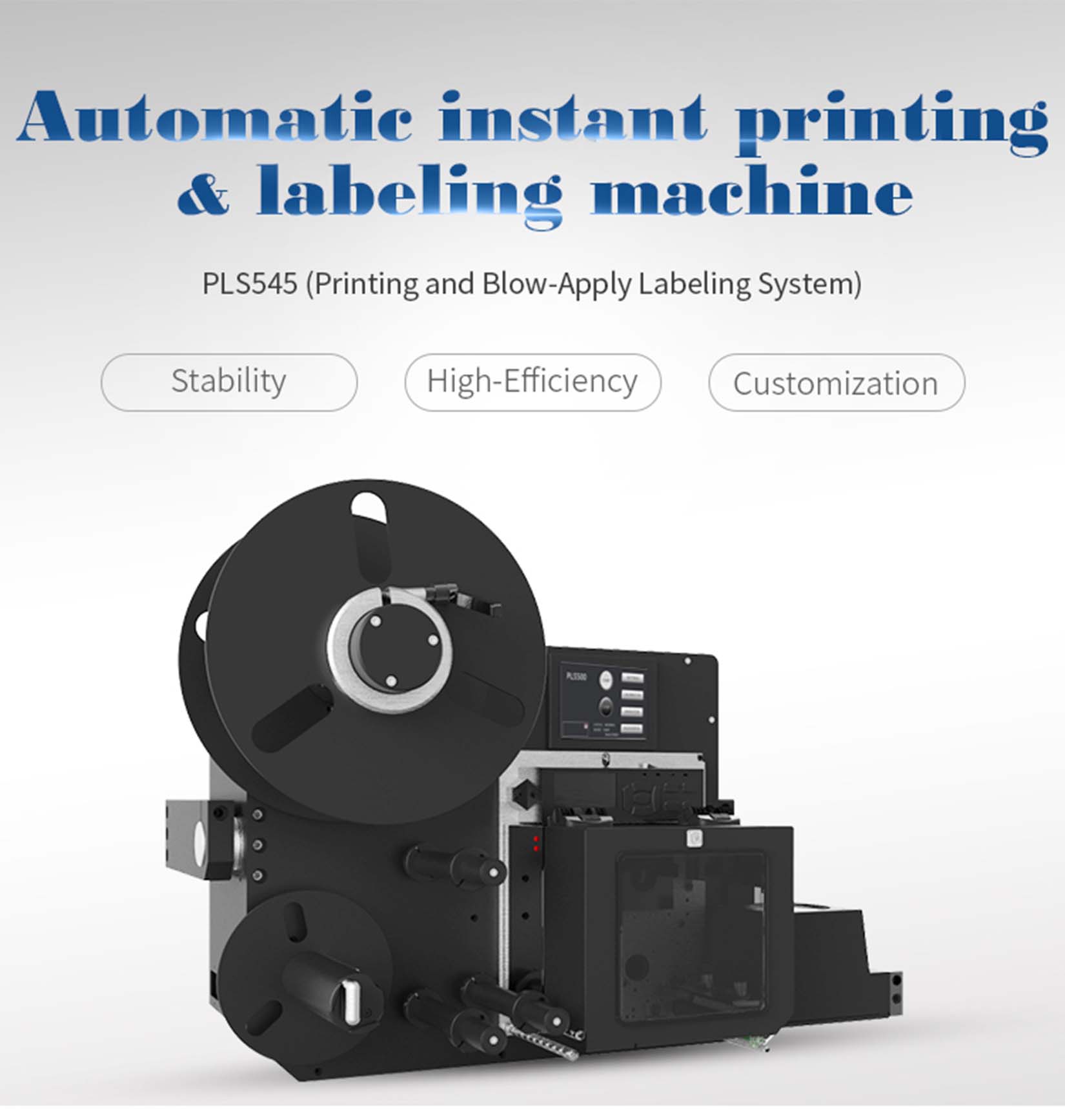

Real Time Print and Blow-Apply Labeling System PLS54C

Labeling method:

blow labeling

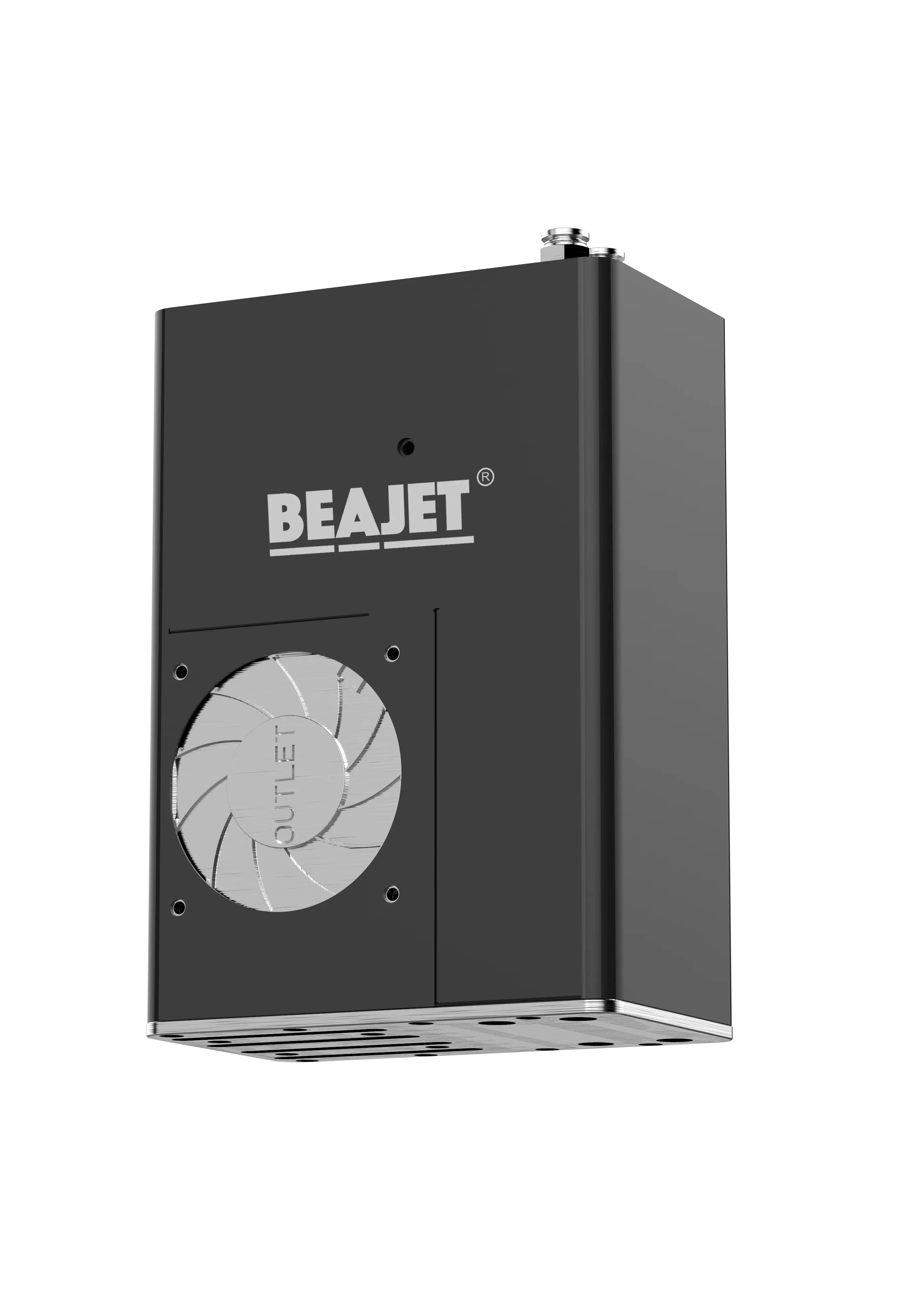

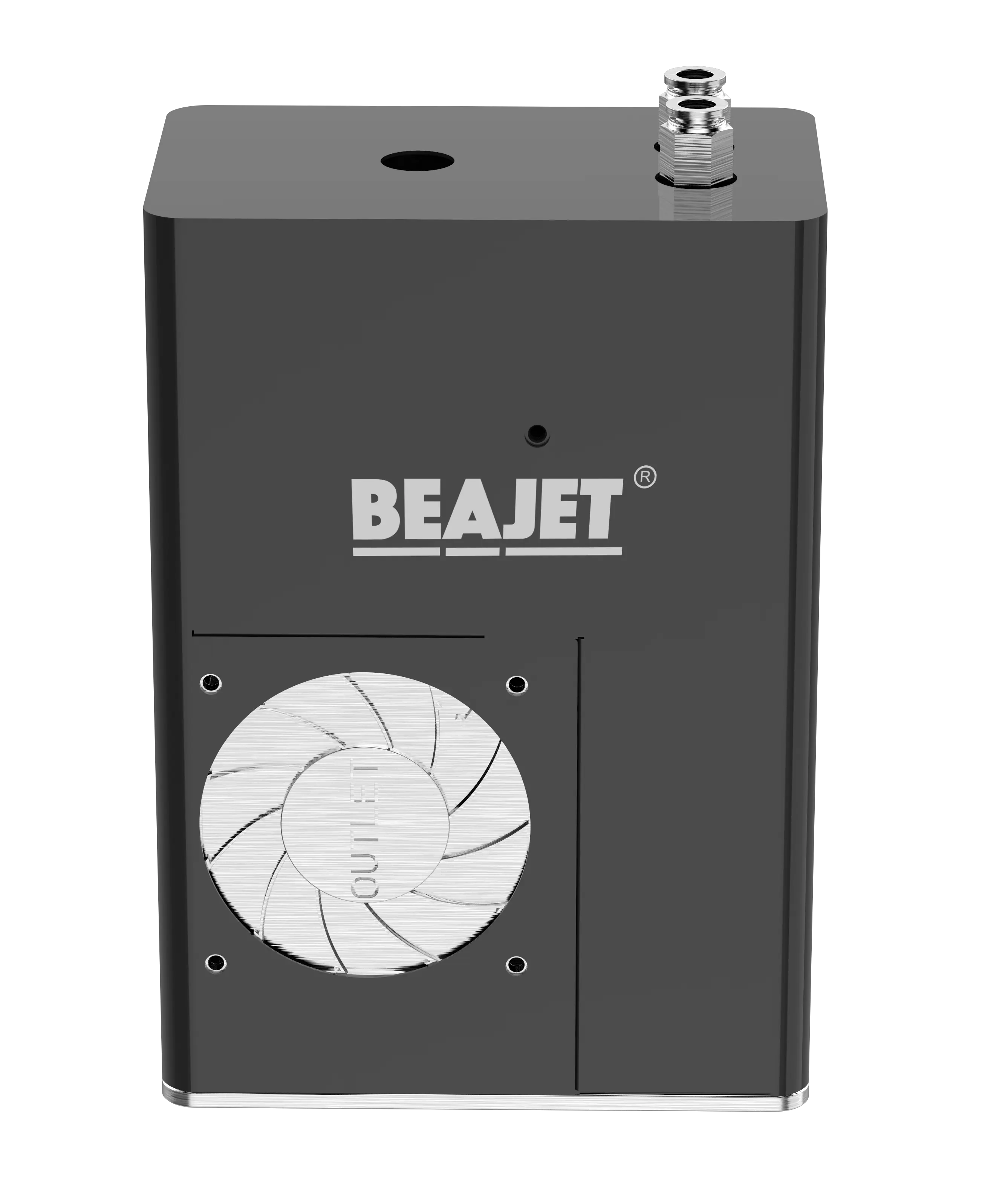

Labeling arm model:

P54C

Labeling speed (optional high-speed cylinder):

60 sheets / minute

Labeling stroke:

Z20mm

Labeling precision:

±2mm

Product size (body + labeling arm):

739.4*453.5*562mm

Product weight:

54KG

Printer Brand:

ZEBRA, TSC

Print resolution:

203dpi, 300dpi, 600dpi

Printing label material:

coated paper, thermal paper, PE composite film, etc.

Applicable label size:

W:13-1 68mm, H: 10-300mm

Label roll size:

inner diameter 7 6mm, outer diameter 300mm

Working voltage:

100-220V

Working air pressure:

0.4-0.6Mpa

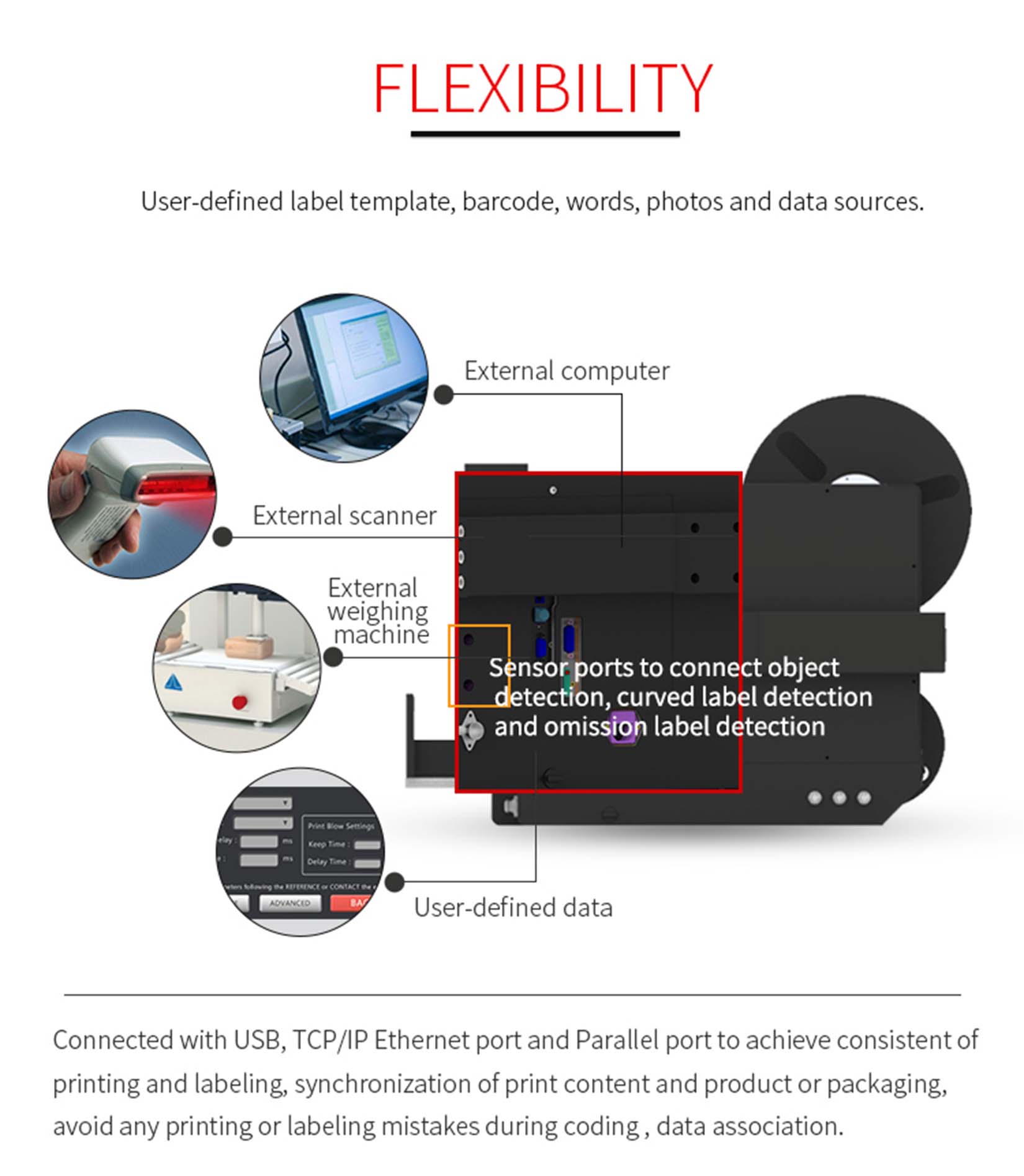

Print data transmission interface:

USB, Internet

Control interface:

2PIN RS485, 4PIN active interface, 9PIN IO point

Warranty:

1 year
